• Solderless Breadboard

    Body material : EIC Brand, ABS plastic & POM plastic
    Heat distortion temperature :
     ．84℃ for ABS plastic
     ．150℃ for POM plastic
    Spring clip contact : Phosphor Bronze
    Finish : Nickel plated
    Contact life : 50,000 times
    E.I.C. blister card package
    RoHS Compliance
    Combines additional boards for larger breadboard available
    OEM & Own design is welcome
All product images are for reference only. Please refer to the actual product.
Please Click products below, and click Add to Inquiry List for inquiry.
Total of 35 results

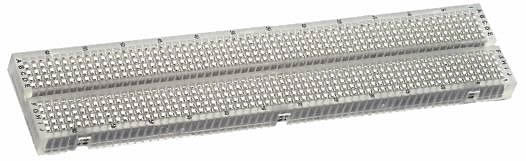

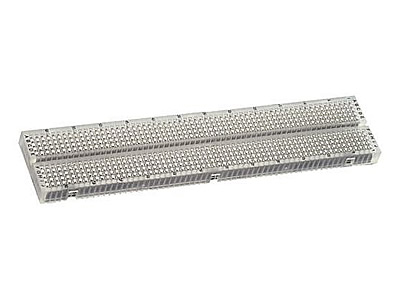

  • EIC-130TN
    • 630 Tie-point

    Specifications

    • Square hole
    • 165.1x35.5x8.5mm
    • 1 Terminal strip
    • Transparent ABS plastic with  color  printed

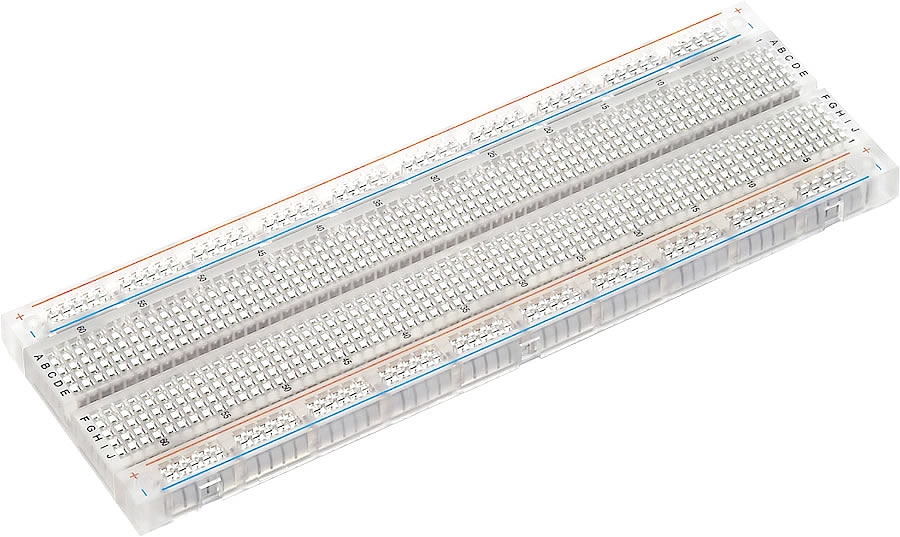

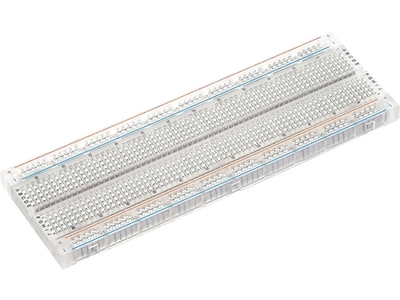

  • EIC-1302
    • 830 Tie-point

    Specifications

    • Square hole
    • Plate 164x52x0.3mm (Optional)
    • Board 165.1x54.6x8.5mm
    • Transparent ABS plastic with color printed
    • 1 Terminal strip, 630 tie-point
    • 2 Distribution strips, 200 tie-point

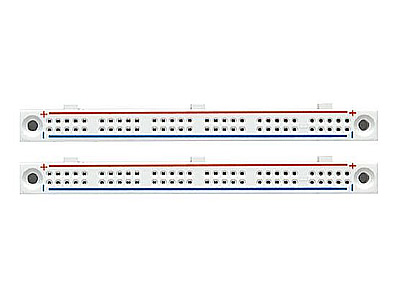

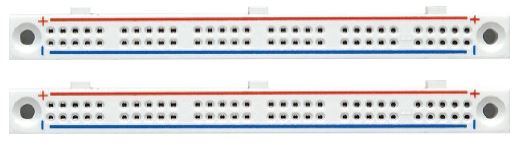

  • EIC-180DN
    • 60 Tie-point/PC
    • 2PCS/SET

    Specifications

    • Square hole
    • 104.14x9.4x8.5mm
    • 2 Distribution strips, 120 tie-point
    • ABS plastic with color printed

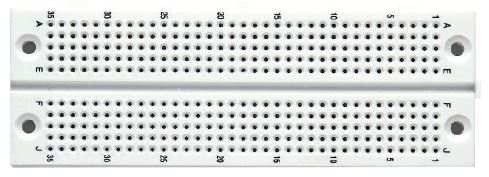

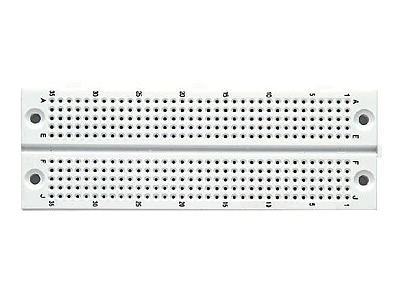

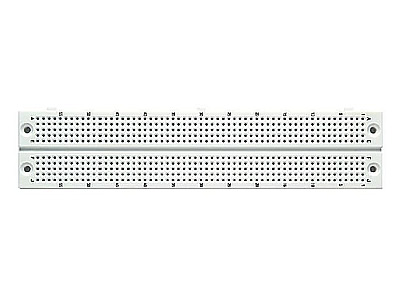

  • EIC-180TN
    • 350 Tie-point

    Specifications

    • Round hole
    • 104.14x35.6x8.5mm
    • 1 Terminal strip
    • ABS plastic with color printed

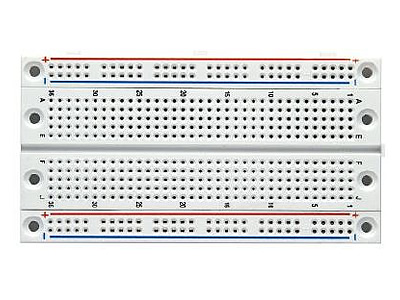

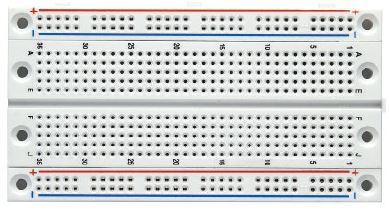

  • EIC-18020
    • 470 Tie-point

    Specifications

    • Round hole
    • 104.14x54.4x8.5mm
    • 1 Terminal strip, 350 tie-point
    • 2 Distribution strips ,120 tie-point
    • ABS plastic with color printed

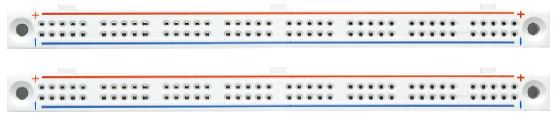

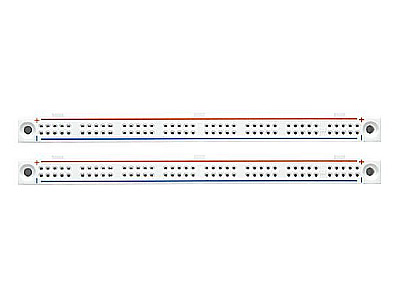

  • EIC-190DN
    • 80 Tie-point/PC
    • 2PCS/SET

    Specifications

    • Round hole
    • 134.62x9.4x8.5mm
    • 2 Distribution strip, 160 tie-point
    • ABS plastic with color printed

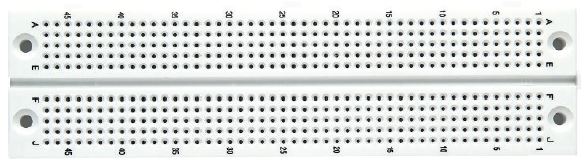

  • EIC-190TN
    • 470 Tie-point

    Specifications

    • Round hole
    • 134.62x35.6x8.5mm
    • 1 Terminal strip
    • ABS plastic with color printed

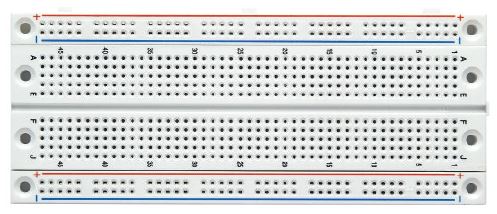

  • EIC-19020
    • 630 Tie-point

    Specifications

    • Round hole
    • 134.62x54.4x8.5mm
    • 1 Terminal strip, 470 tie-point
    • 2 Distribution strips, 160 tie-point
    • ABS plastic with color printed

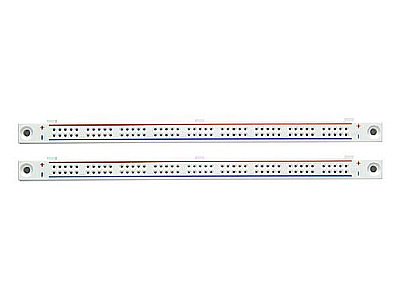

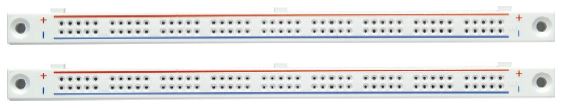

  • EIC-200DN
    • 90 Tie-point/PC
    • 2PCS/SET

    Specifications

    • Round hole
    • 165.1x9.4x8.5mm
    • 2 Distribution strip, 180 tie-point
    • ABS plastic with color printed
  • EIC-200TN
    • 590 Tie-point

    Specifications

    • Round hole
    • 165.1x35.6x8.5mm
    • 1 Terminal strip
    • ABS plastic with color printed
